Note, we have many waveguide sections (flex and rigid).

Also waveguide transitions and adapters.

V-Band WR15 parts have moved here.

All our Q-Band WR22 33-50 GHz parts have moved here .

All our WR28 parts have moved here.  All our WR42 parts have moved here.

All our WR75 10-15 GHz parts have moved here

X-Band WR90 parts have moved here. H-Band WR112 has moved here

 This table is sorted manually by manufacturer. NOTE:  Send us an email if you would like a button added to a specific item.

APTEC . ELECTRONICS

.
WAVEGUIDE . Inventory Price List

price

 qty loc buy now
Model Manufacturer Item Description

ea. US $

 . .
AT-68/UP no mfg 8500 - 9600 MHz horn

150

 2ea available .

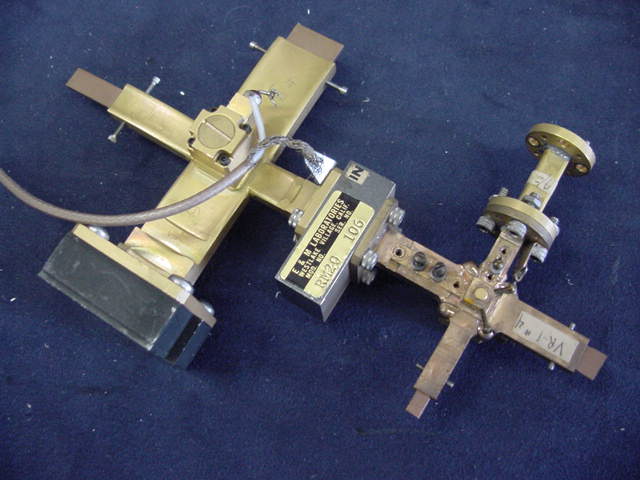

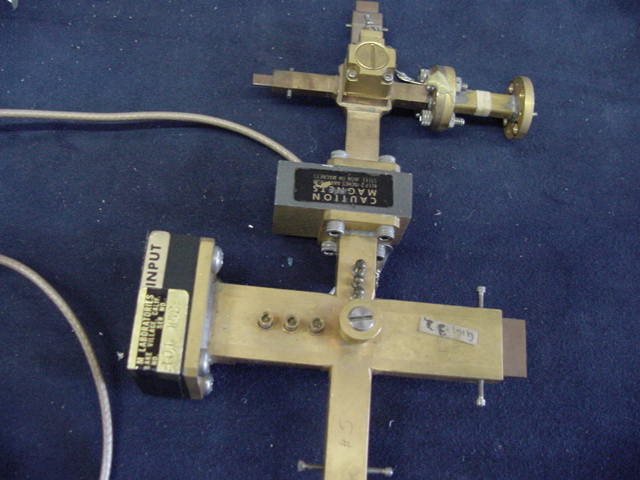

special no mfg mixer pair? (see pictures)

call

 . .

at3-b-062-0600

 airtron 6" twistaguide (2 new w/data 12.4-18GHz)

125

 2 .

7CAC-274443

 A. R. F. Products  ID403 2600 - 3950 MC 600 watts dummy load

450

 ctn .
Q347B Agilent 33-50 GHz noise source NewInBox  -image-

2999

 nu
Q8486A Agilent  33 -50 GHz power sensor NewInBox! -image-

3399

 nu
Q8486D Agilent  33 -50 GHz low power sensor NewInBox! -image-

3999

 nu

DX242

 Amperex mmw tube -image-

call

 mmw .

ku462

 Arra w/g to coax adapter (2)

75

 . .

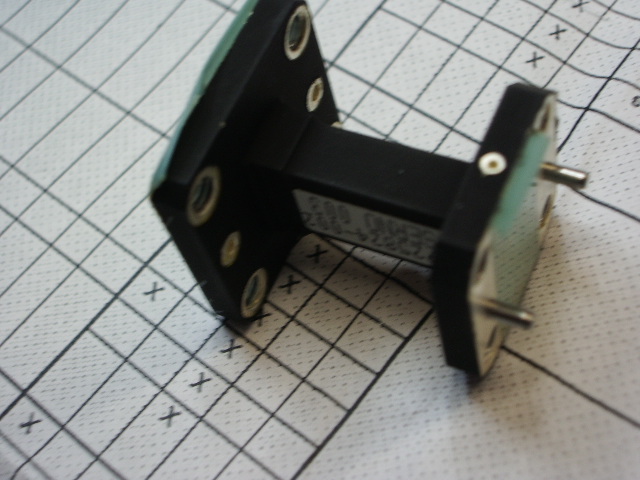

WR 28 to WR 34

 HAC w/g transition adapters (flight - new w/data sheets) -image-

150

 f5 TR43

HPT650

 Continental Microwave hi power load WRD650

350

  TNT

559B-20

 control data directional coupler

350

 Qband

RS34-1A-1A-3.0A

 CMT WR34 3 inch section 22-33 GHz

100

 TR75

VTX-6281H4

 CPI TWTA X-band 600 Watts

call

 DE .

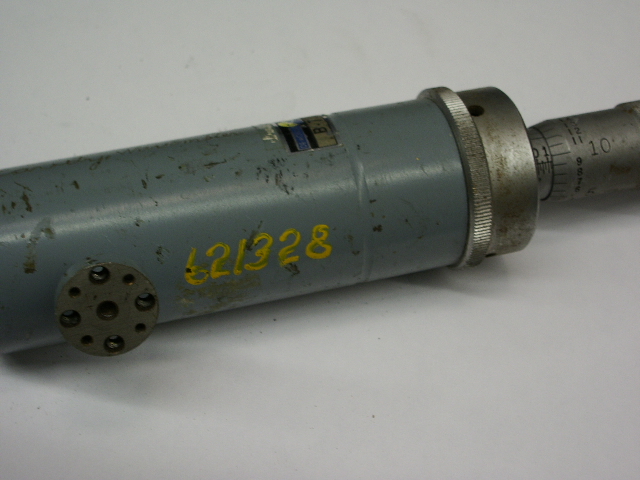

B-715-1 demornay-bonardi cavity wave meter image

call

 mmw .

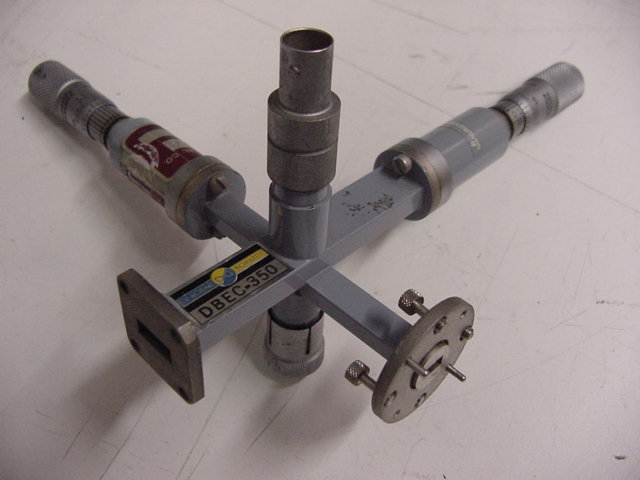

DBEC-350

 d b harmonic generator -picture-

375

 . .

DBEF-018

 d b WR-42 to WR-62 transition

250

 1
L 715 Demornay-Bonardi   L-Band device -image-

call

 1 tekcab

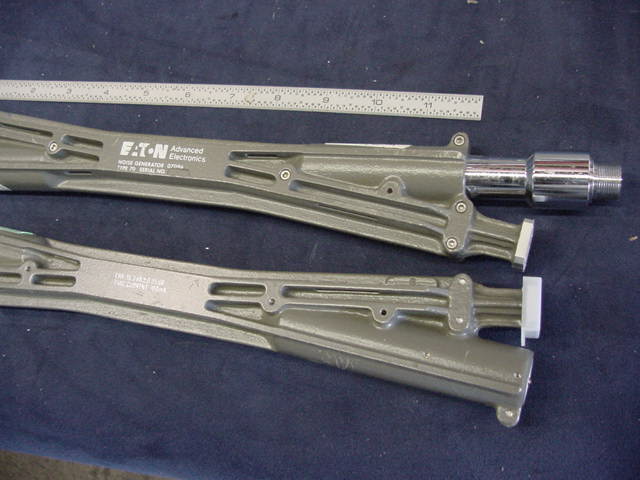

type 70 Eaton r - band noise tube

500

 (2)

419-41.83

 electromagnetic sciences inc. isolator? -image-

call

 .. .
KH101 E & M Labs isolator

100

 .. .
Y155A FXR Ku band attenuator

75

 .. .

wr28 to wr34

 HAC w/g transition adapters (flight - new) -image-

150

 f5
hp 08747-60005-K Hewlett-Packard POWER Splitter K-band

250

 . .
hp 08747-60006 Hewlett-Packard 10 DB COUPLER

250

 . .

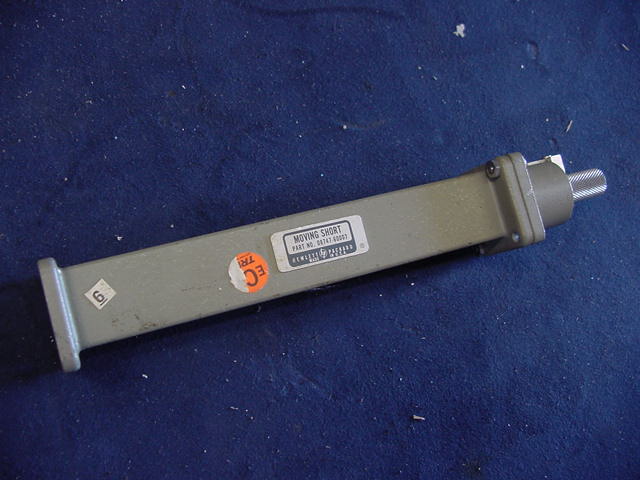

hp 08747-60007 Hewlett-Packard MOVING SHORT K-band

450

 now in stock .

HP 442B

 Hewlett-Packard tuned probe SOLD

200

 SOLD. SOLD

HP 444A

 Hewlett-Packard tuned probe

SOLD

 SOLD SOLD

HP 447B

 Hewlett-Packard untuned probe

SOLD

 SOLD SOLD

HP 806A

 Hewlett-Packard coaxial slotted line

200

 . .

HP 809B

 Hewlett-Packard coaxial slotted line carriage (byt+)

225

 dd2 call for avail.

HP 809C

 Hewlett-Packard carriage

call

 byt call for avail.

HP 814B

 Hewlett-Packard carriage (see R815B)

call

 . .

HP 816A opt 022

 Hewlett-Packard coax slotted line (call for availability)

250

 . .

HP 83556A

 Hewlett-Packard WR19  Millimeter-Wave Source 40-60 GHz

12,000

 . In Stock

HP 85100V

 Hewlett-Packard WR15 V Band Millimeter-Wave Source Module 50-75 GHz

14,000

 . In Stock
HP MP292A Hewlett-Packard WR-42 to WR-62 ADAPTER

175

 .
HP MX292A Hewlett-Packard WR-42 to WR-90 ADAPTER

125

 3ea
HP MX292B Hewlett-Packard WR-42 to WR-90 ADAPTER

150

 1ea
HP NK292A Hewlett-Packard WR51 x WR42 Waveguide Taper

175

 qty
HP NP292A Hewlett-Packard WR-51 to WR-62 ADAPTER

175

 .
HP S281A Hewlett-Packard w/g to coax adapter

275

 BYT
Q347B Agilent 33-50 GHz noise source NewInBox  -image-

2999

 hpnu
Q8486A Agilent 33 -50 GHz power sensor NewInBox! -image-

3399

 hpnu
Q8486D Agilent 33 -50 GHz low power sensor NewInBox! -image-

3999

 hpnu
HP Q365A Hewlett-Packard WR22 Isolator, 25 dB, 33-50 GHz

750

 mmw

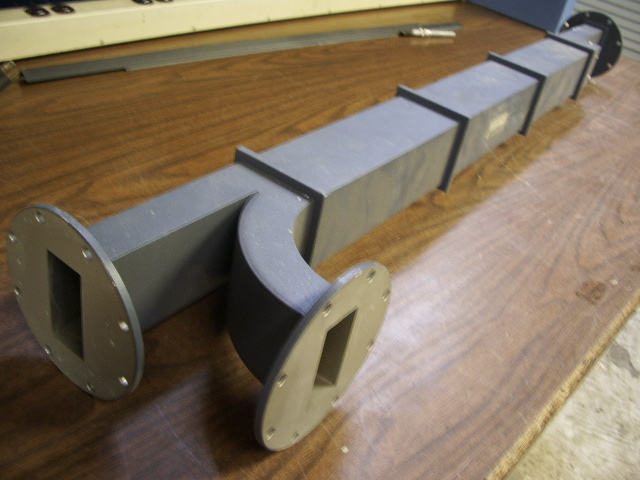

HP-S752D

 Hewlett-Packard WR284 Directional Coupler, 20 dB coupling -image-

550

 132N

HP U85026A

 Hewlett-Packard 40 - 60 GHz Detector

call

 . .
1024 Hughes circulator

75

 . .
1024B Hughes circulator

75

 . .
41102H Hughes 19 & 28GHz solid state source

250

 bb1 .
7776711 Hughes  SCG Ku Band w/g-sma adapter space  grade

250

 (12ea) P5 .
7779182 Hughes  SCG Ku Band var. attenuator space  grade

250

 (45ea) P5 .
7910416 Hughes  SCG Ku Band w/g-coax  space  grade

250

 (10ea) P5 .

mmc 8021D1

 Maury microwave   3.5 mm precision bulkhead -data-

call

 vna .

B209B

 Maury microwave   apc-7 to w/g adapter

100

 . .

Q236A25

 Maury microwave   22-33 GHz to 2.4 mm adapter (new w/specs.)

SOLD

 SOLD SOLD
T-126K01 mica microwave 26-40 GHz 3.5 mm isolator -data here-

call

 2 mmw .

927049-1B

 Microlab/FXR w/g load (New Old Stock)

call

 BB0411 .

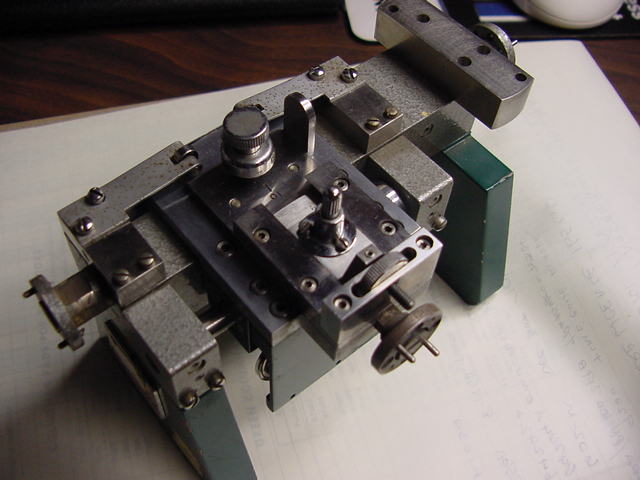

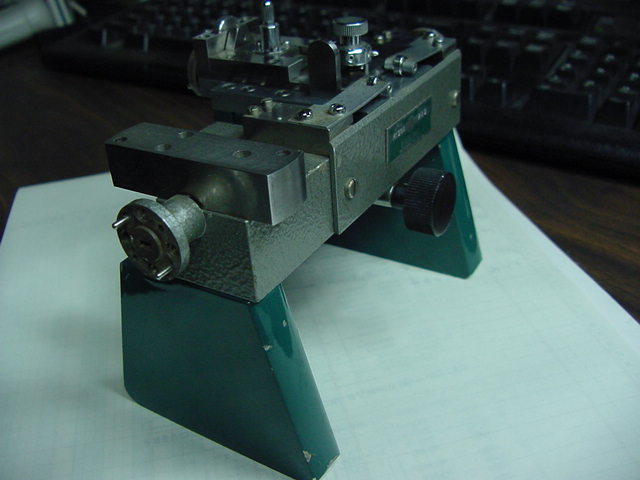

M103A

 Microlab/FXR mmw slotted line front rear

750

 .. .
54647-225292 Microtech WR-75 to WR-62 transition 2"

250

 1 wg
J40-NAM Microwave Research w/g - type N adapter

125

 byt

45322H-1230

 Millitech coupler 30dB

425

 .
45512H-1002 Millimeter Wave Products (Hughes) remote controlled w/g switch -picture-

call

 2 .
45514H-1002 Millimeter Wave Products (Hughes) remote controlled w/g switch -picture-

call

 2 .
45724H-1000 Millimeter Wave Products (Hughes) WR-15 v band attenuator (domestic USA sales only)

2000

 DD2

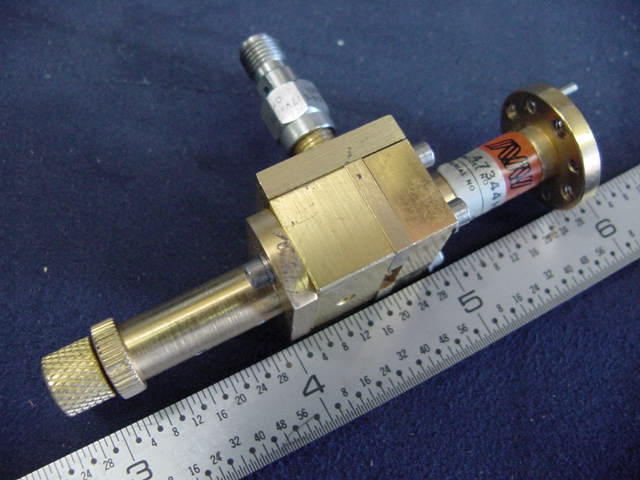

47344H-1200 Millimeter Wave Products (Hughes) mmw source? (domestic USA sales only)

1800

 . .

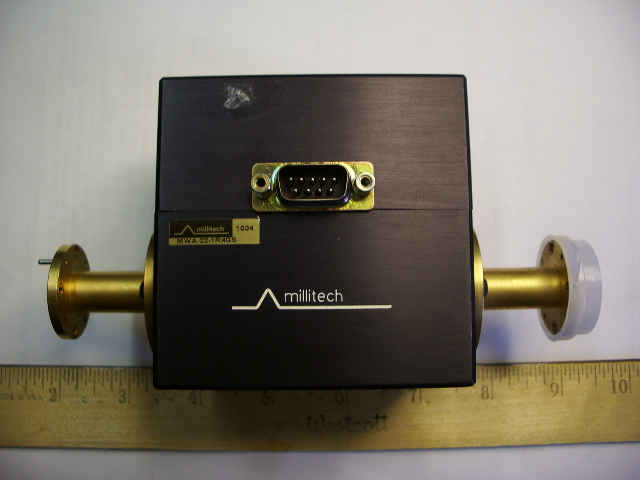

MWA-22-1R4GS Millitech WR-22programmable atten. -image- Q-band (domestic USA sales only)

call

 mmw3. .

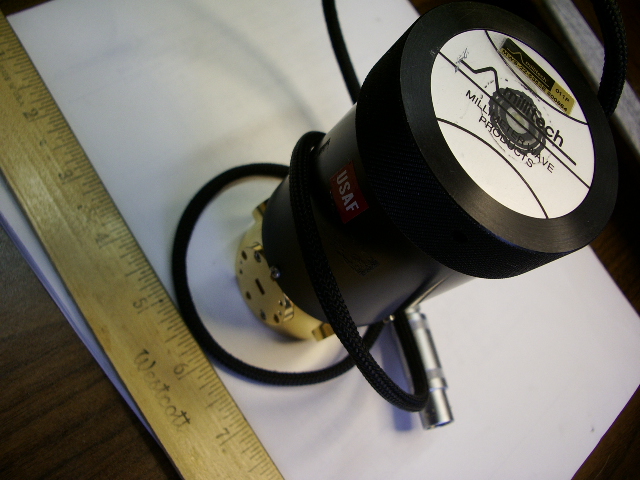

MWS-22-5253E Millitech WR-22 Q Band remote w/g switch -image-

call

 mmw3 .

more narda

 Narda click -here- for more narda

.

 . .

719-3

 Narda atten. 3 dB

50

 . .

20V10

 OKI 18-22 GHz 15 mm band Klystron with data sheet NIB -image-  -image- UG-595/U RG-53/U

call

 3 .

22V10

 OKI 13.6 mm band Klystron with data sheet NIB -image-  -image- UG-595/U RG-53/U

call

 6 .

30V12

 OKI WR-28 flange Klystron NEW!

SOLD

 SOLD SOLD

45V12

 OKI 6.7 mm band Klystron USED UNTESTED

call

 1 .

60V12

 OKI 5.0mm band Klystron USED UNTESTED flange UG-385

SOLD

 SOLD SOLD

3316C

 Penn engineering components SHF waveguide coupler  (.5 x .25")

150

 . .

138E

 PRD 30 dB atten. at 15 GHz

50

 . .

355

 PRD ug-51 wave/coax type N

75

 . .

481

 PRD magic tee (4-port)

175

 . .

U3403

 PRD x band to Ku band transition

125

 1 .

45112Q-1000

Quinstar Technologies

Q-band isolator WR-22 -data-  -photo-

call

3 mmw

 .
KA Sage Labs waveguide device 26-40

250

 mmw .
11-12 Scientific Atlanta waveguide / N adapter

75

 . .
12-3.9/CMR Scientific Atlanta CMR flange standard gain horn

250

 BYT (2)
SM15-4PL1-T Sector Microwave Ind. WR 15 50-75GHz switch V band 28 volt (may also be used manually) -data- (domestic USA sales only)

750

 9 dd2 V-band.
SM22-1062 Sector Microwave Ind. WR 22 switch Q band -image- 28 volt (may be used manually) 33-50GHz (domestic USA sales only) -data-

750

 4 mmw3.
SM22956 Sierra Microwave isolator 3.5 mm

call

 mmw .

47U2

 Sperry microline KU-band variable atten (nu)

125

 . .

DBB-210

 S D straight section

CALL

 . .

DBB-275

 S D flange mount section

75

 . .

DBB-276

 S D air pressure section

150

 . .

DBB-614-LE-2

 S D WR15 SPDT 28 v. switch (used) 50-75 GHz -image- -image-

500

 2ea. xb12

DBB-614-RE-2

 S D WR15 DPDT 28v. switch (used) 50-75 GHz -image- -image-

500

 2ea. xb12

DBB-614-LE2

 S D WR15 28v DPDT switch (new) 50-75 GHz -image- -image- (domestic USA sales only)

800

 3ea. xb12

DBB-614-RE2

 S D WR15 28v DPDT switch (new) 50-75 GHz -image- -image- (domestic USA sales only)

800

 3ea. xb12

DBEF-018

 S D transition

75

 . .
DBF-057-1 Systron donner waveguide / sma adapter

75

 . .
DBF-058 Systron donner waveguide / sma adapter

75

 . .

DBF-059

 S D w/g to APC-7

75

 . .
DBF-210 Systron donner 2" & 6" & 19.375" section

50

 . .
DBH-057 Systron donner w/g to coax

50

 . .
DBH-410 Systron donner prec. atten w/starret dial ind.

250

 . .

187WI-30

 3DBM inc. 3.95-8.85 w/g isol G-band

125

 byt .

4-mp-170a

 3DBM inc. w/g transition ku-p?

75

 . .

B510-25

 TRG  WR-15 precision v-band atten. (in wood box!)

750

 . .

B550-25

 TRG  WR-15 v-band frequency meter  (in wood box!)

550

 .. .

B551-22

 TRG  WR-22 33-50GHz frequency meter  (in wood box!)

550

 . .

BB740-18

 TRG WR-15 B740-18 v-band slotted line w/gage (in wood box!)

500

 . .

B559-20

 TRG / Alpha WR-22   20 dB directional coupler

350

 Qband

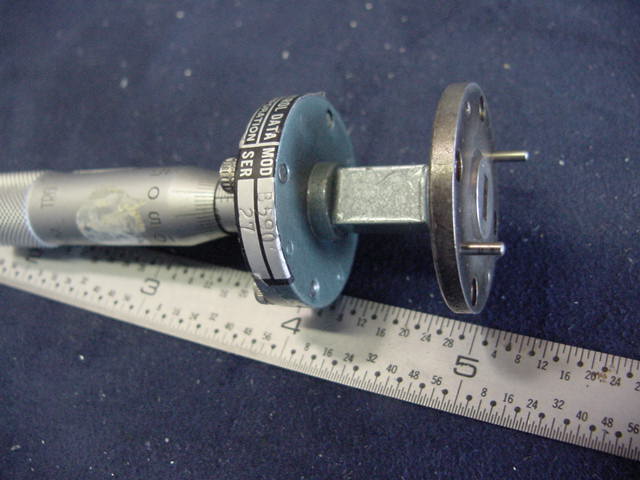

B590

 TRG  micrometer adjustable mmw device

call

 . .

B890

 TRG  horn

400

 . .
KU520 TRG variable attenuator

250

 ku .

V510

 TRG  WR-15 v band variable precision attenuator as-is

325

 . .

V531-69

 TRG  WR-15 49.9 - 75 GHz v band freq. meter

425

 . .

V551-52

 TRG WR-15 50-75 GHz frequency meter -image-

595

 . .

V561-20

 TRG  WR-15 20 dB coupler

275

 . .

V605

 TRG  WR-15 v band mixer

call

 . .

V660

 TRG  WR-15 v band E bend

100

 .. .

.

 TRG  WR-15 v band H bend

100

 . .

V965

 TRG  WR-15 v band tunable device

225

 2 .

W600-35

 TRG  w band 4 port device -image- -image-

call

 mmw .

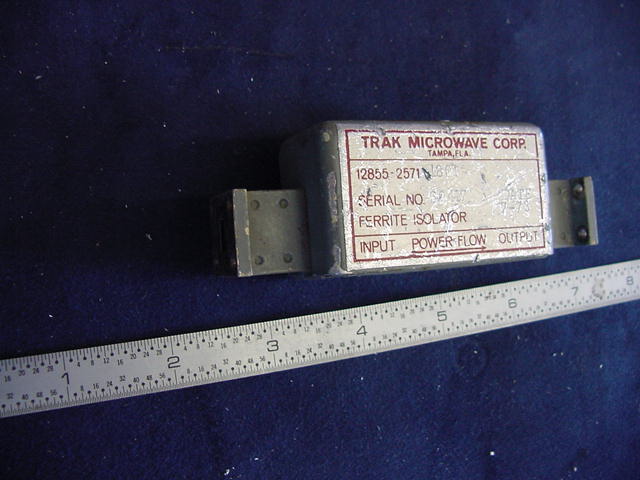

12855-2571-1801

 trak microwave old ferrite isolator

100

 . .

2901

 waveline  WR229 TO Type N (f) ADAPTER , 3.30 TO 4.90 GHz , CMR229

150

 SOLD .

2922

waveline CMR 229 C-Band rotary vane precision attenuator

750

 1

470?

 waveline directional coupler -image-

CALL

 2 ea .

494

 waveline J to G band transition

175

 BB0411 .

5190-2

 waveline 6" twist

75

 (3ea) .

582

 Waveline UG 138/U flange 7.05-10.0 GHz 600 W avg. LOAD  vswr 1.10  460 KW Peak

250

 (2ea) SB32

758

 waveline magic t (assy w/isol's)

call

 pb8+ .

35WR28KF

 Wiltron / Antirsu WR-28 precision w/g - coax adapter 26-40 GHz.-data-

675

 call for avail.

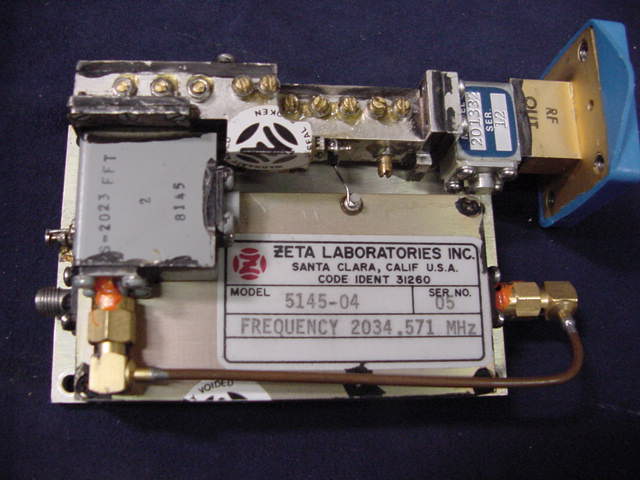

5145-04

 zeta multiplier

500

 .. .



Waveguide Flange Dimensions


ROUND FLANGE TABLE, inches/mm
FREQUENCY BAND WR-22 and WR-42
through WR-19		 WR-15 through WR-5
A 1.125/28.6 0.750/19.0
B 0.937/23.8 0.562/14.3
C 0.500/12.7 0.375/9.5
SQUARE FLANGE TABLE, inches/mm
FREQUENCY BAND WR-42 WR-28
A, B 0.875/22.2 0.750/16.6
C 0.640/16.2 0.500/12.7
D 0.670/17.0 0.530/13.5


Frequency,
GHz		 Band WR # Inside Dimensions,
inches/mm		 Cover Flange
Reference*		 Flange Type
18-26.5 K 42 .420 x .170/4.32 x 4.32 UG-595/U Square
22-33 WR-34 34 .340 x .170/8.64 x 4.32 UG-595/U Square
26.5-40 Ka 28 .280 x .140/7.11 x 3.55 UG-599/U Square
33-50 Q 22 .112 x .224/2.84 x 5.68 UG-383/U Round
40-60 U 19 .188 x .094/4.77 x 2.38 UG-383/U-M Round
50-75 V 15 .148 x 0.74/3.75 x 18.8 UG-385/U Round
60-90 E 12 .122 x .061/3.09 x 1.54 UG-387/U Round
75-110 W 10 .100 x .050/2.54 x 1.27 UG-387/U-M Round
90-140 F 8 .080 x .040/2.03 x 1.01 UG-387/U-M Round
110-170 D 6 .065 x .0325/1.65 x 0.825 UG-387/U-M Round
140-220 G 5 .051 x .0255/1.29 x 0.65 UG-387/U-M Round
for reference only
